/ 24W High Performance

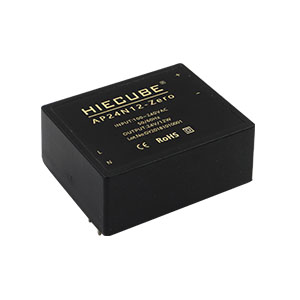

24W High Performance

 Worldwide universal range AC and DC input
?  Built-in lightning protection surge,pulse group attenuator
?  Built-in EMC circuit Meets EN55032 ClassB rating
?  Synchronous rectified, differential mode filtering, common mode filtered output, Regulated, low ripple noise output
?  Small size: 49*36*23mm
?  Protection type: overload protection, short circuit protection, overheat protection
 No need for peripheral circuit design, PCB soldering installation
?  CE/RoHS certified

Compared with the 24W economy, EMC circuit, lightning protection and surge circuit, pulse group attenuation circuit, output common mode differential mode filter and output filter capacitor are added

Click on the ACDC power module below to learn more

系列標題 功率(W) 輸入電壓(VAC/DC) 輸出電壓
(VDC)
輸出電路 隔離耐壓(VAC) 封裝形狀 封裝尺寸
(mm)
PDF
AP05N15-Zero 15 85~265VAC/100~370VDC 5 Single output 3000 DIP 49*36*23mm
AP06N15-Zero 15 85~265VAC/100~370VDC 6 Single output 3000 DIP 49*36*23mm
AP09N24-Zero 24 85~265VAC/100~370VDC 9 Single output 3000 DIP 49*36*23mm
AP12N24-Zero 24 85~265VAC/100~370VDC 12 Single output 3000 DIP 49*36*23mm
AP15N24-Zero 24 85~265VAC/100~370VDC 15 Single output 3000 DIP 49*36*23mm
AP20N24-Zero 24 85~265VAC/100~370VDC 20 Single output 3000 DIP 49*36*23mm
AP24N24-Zero 24 85~265VAC/100~370VDC 24 Single output 3000 DIP 49*36*23mm
